10.3.2.1. Accounts General Page

The Manage Accounts >General page allows system administrators to configure basic account settings such as the account name, password and also displays general information regarding the account in question.



Use the First name and Last name text fields to modify the name of the person the account is created for. The account name can also be edited in its respective text field.

To change an account's password, either type another one in the Account password text field or click the Set Random button to select a random password combination. When using this button the password randomly assigned is displayed under it.

To select whether the default settings established at domain level should be inherited by the account you are currently managing or if the account should be associated with an already defined account class use the Inherit configuration details drop down menu.

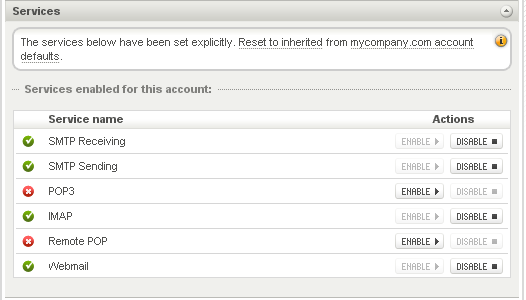

The services section displays the list of account services and their current status. To enable or disable a service, use the respective buttons corresponding to that service's name. Please note that at account level only services affecting account behavior are displayed - SMTP Receiving, SMTP Sending, POP3, IMAP, Remote POP and WebMail.

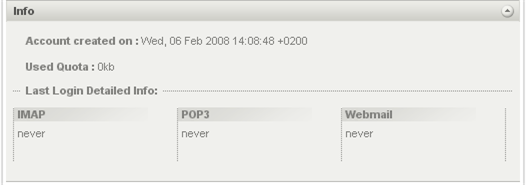

The Info section of the account displays details referring to the creation date of the account, used quota and time, date and IP coordinates of the last logins to the respective accounts through IMAP, POP3 and WebMail.

When you are done configuring these parameters, remember to hit the Save Configuration button to preserve your changes.
