10.6.2. Charts Tab

The Status & Monitoring > Charts tab allows system administrators to configure sets of parameters to be monitored and view their corresponding graphical activity charts.

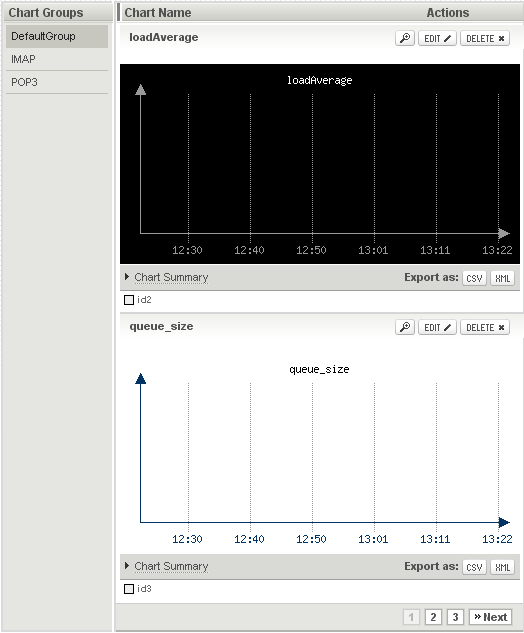

Defined charts

When accessing the Charts tab a list of the already configured graphics is displayed, if none has been previously created the list will be empty.

To edit or delete any of the already defined charts use the options under the Actions section: to edit the details of an already defined chart hit the Edit hit its button on the right side of its name, to delete it click the corresponding Delete button. Should you like to add a chart hit the Add Chart button and fill in the requested details.

Use the drop-down menu to select one of the available chart groups or create a new one by filling in its name in the corresponding text box. Then specify the desired name for your chart and hit the Next step button. This will result in displaying two new pages: Chart Parameters and Display Settings. The same pages will also appear when wishing to edit the parameters of an already defined chart.

Available Chart Groups

The defined Chart Groups allow quick and comprehensive browsing through all the displayed graphs: clicking on one of the available groups will result in displaying all the charts defined for that specific group to ease the search and configuration.

Refresh options

For an accurate representation an automatic refresh option is available alongside a manual refresh button.

See subsections of current page for more details:

Chart Parameters Configuration
Display Settings
