10.3.1.4. Domain Message Filters Page

The Manage Domains > Message Filters page helps system administrators create and manage incoming message rules and AntiVirus / AntiSpam filters for a specific domain.

Important!
  • Domain level rules for this domain will run after any existing Server level rules (common actions will be overridden)
  • AntiVirus / AntiSpam filters enabled at domain level provide the accounts in this domain with an additional filtering layer.

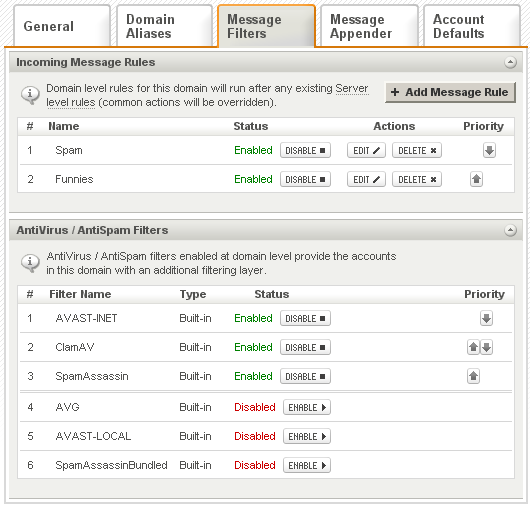

When first accessing the page, a list with the already defined rules and filters is displayed. Both lists can be minimized or maximized by clicking the list name bar. Each message and filter has a Enabled/Disabled status displayed and next to it, the Enabled/Disabled button displays the opposite action of the status. Priorities between enabled Antivirus / Antispam filters or Message rules can be changed using the up and down arrows under the Priority section.

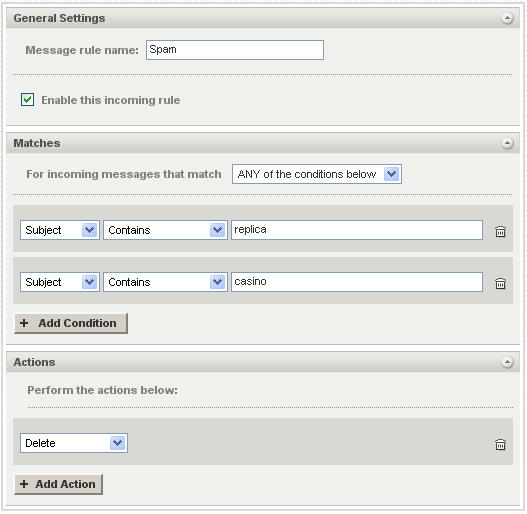

To add a new rule for the configured domain, click the Add Message Rule button. They can be deleted or further configured using the Delete and Edit buttons. Type a name for the incoming message rule in the Message rule name text filed and check the Enable this incoming rule option to activate it.



Further select if the messages filtered should match all or any of the defined criteria set below. You can add as many conditions as you wish by clicking the Add Condition button. Use the Add Action button to define the actions to be taken if an email message matches the specified criteria.

When you are done configuring these parameters, remember to hit the Save Configuration button to preserve your changes.
