10.3.4.1. Mailing Lists General Configuration

The Manage Lists > General tab allows system administrators to set the running services for a specific domain and other domain related parameters.

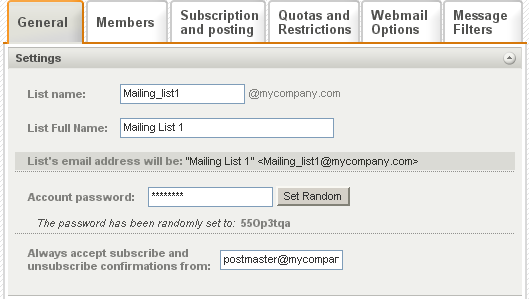

Settings

Use the List name and List Full Name fields in order to edit the name of the mailing list. The complete name will appear as displayed under these fields. In this example, "Mailing List 1" <Mailing_list1@mycompany.com>.

Use the Account Password text area to manually specify the password for accessing the mailbox of this list, or generate one randomly by hitting the Set Random button. The new randomly generated password will be displayed in the field below: 55Op3tqa, in this case.

Subscription and unsubscription confirmations are automatically accepted for the mailing list displayed under Account Password. Leave blank in the text box if you wish these requests to be confirmed by the administrator.

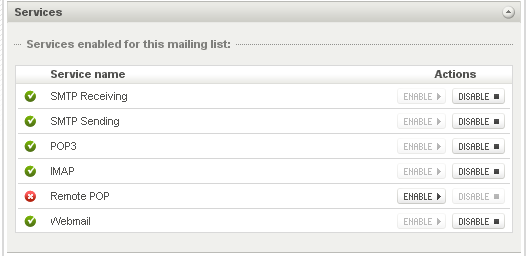

Services

Use the Services field to specify what services are enabled for this mailing list. To enable or disable a service use the respective buttons corresponding to that service's name. Greyed out options are the ones active.

Info

The General page also displays specific details about the currently edited mailing list in the Info section. The information refers to the account creation date, as well as time details for the last modification and login.

When you are done configuring these parameters, remember to hit the Save Configuration button to preserve your changes.
