10.3.2. Manage Accounts Tab

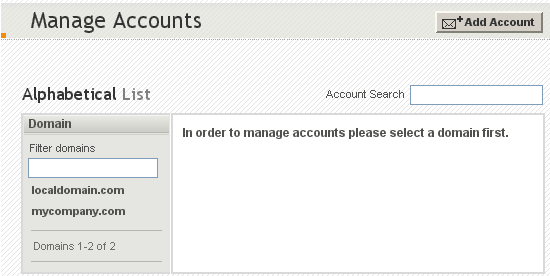

When first accessing the Manage Accounts tab a list of existing domains is displayed. To be able to manage the accounts first select one of the existing domains.

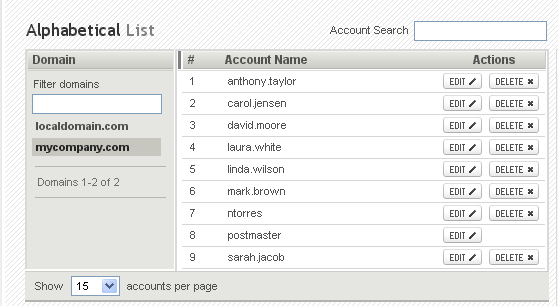

After selecting a certain domain, the list of previously created accounts is displayed. To run a search for a specific account use the Account Search field.



To edit an existing account use its corresponding Edit button, to delete it hit the Delete button. In order to create a new account, hit the Add Account button.



The domain you are creating the account in is displayed in the Domain name field if you have already selected a certain domain. If you press the Add Account button prior to the domain selection you will have to type the desired domain. Specify a name for the account you are creating in the Account Name text field. Type a password of choice in the Account password text field or click the Set Random button to select a random password combination. When using this button the randomly assigned password is displayed under it.

If you are done configuring the account hit the Quick Add button. Alternatively, should you prefer to further fine tune it click the Advanced Config link. This link and the Edit button of already configured link gives access to four configuration pages, General, Quotas and Restrictions, WebMail Options and Message Filters.

See subsections of current page for more details:

Accounts General Page
Account Aliases
Configuring Quotas and Restrictions
Account WebMail Options
Managing Message Filters
Managing Originator/Recipient Restrictions per Account
