You can select several types of messages to be logged: critical messages, error messages, warning messages, informational messages and protocol communication. To select which of these are to be logged click the Log Level slider and move it to the left or to the right. The selected types of messages will change color from whiter to gray.

Log files can be stored using your internal log files, your system's log files or within the log files located on a remote system. Use the Log drop-down menu to select where to have your log files saved.

Email Delivery

Use the options in the Email Delivery area in order to set the parameters for rescheduling emails in case of a non-critical delivery error in AXIGEN Mail Server.

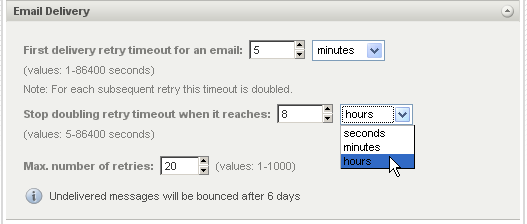

The First delivery retry timeout for an email field allows you to specify the time interval for rescheduling a message in case of a non-critical delivery error in AXIGEN Mail Server. The default value corresponds to 5 minutes, this means that the queue is rechecked after 5 minutes in order to attempt sending the message. The value for this parameter can be entered in seconds, minutes or hours. For each subsequent retry this timeout is doubled.

You can also specify the maximum time interval when the retry timeout is no longer doubled. This option is available in the Stop doubling retry timeout when it reaches field. The default value corresponds to 8 hours, meaning that once the retry timeout reaches 8 hours all subsequent retries will still be made after 8 hours and not after 16. The value for this parameter can be entered in seconds, minutes or hours.

Use the Max. number of retries field to specify the number of times AXIGEN server should try to deliver a mail message in case of a non-critical delivery error in AXIGEN Mail Server.

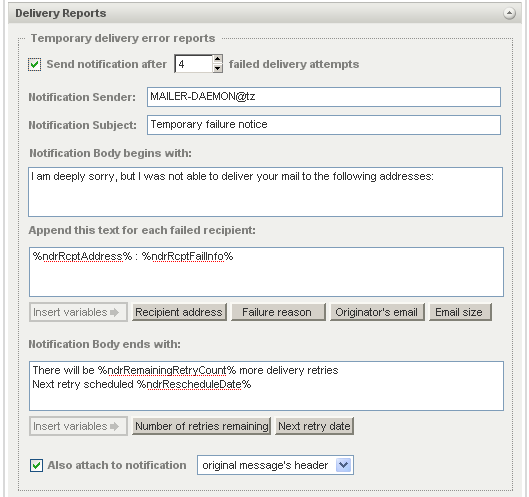

The Temporary delivery error reports area enables you to specify when you should first be notified about the failed attempts to deliver a message. The default value is 4. Change this value by using the up and down arrows or by simply entering the new parameter in the text box available after the Send notification after field.

The notification format can also be defined by filling in the Notification Sender, Notification Subject, Notification Body begins with, Append this text for each failed recipient and Notification body ends with text fields.

Check the Also attach to notification option so the notification email will include either entire original message or just its header.

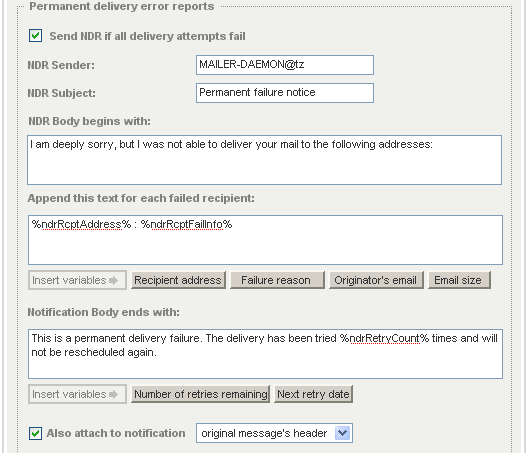

In the Permanent delivery error reports area, you can also define the the NDR (Non-Delivery Receipt) text and the conditions when such a message is returned. As an example, NDR responses are sent when the specified recipient of an email message is invalid.

You can further define the content of the error notification by inserting a number of variables covering the recipient address, failure reason, sender address, email size, as well as the text to be added to the end of the notification body. Use the drop down menu to also select whether to include the header of the original message or the entire original message.

Queue Parameters

The Queue path field allows you to specify the path to the internal server queue. If the string does not represent a valid path the queue will not be stored. By default the AXIGEN server queue is stored in /var/opt/axigen/queue. Changing the already set path will take effect only after restarting the server.

Use the Max. number of queue subdirectories field in order to specify the upper limit for the number of subdirectories in the internal queue. The default value is 64, the maximum is 256.

In the Processing queue size field specify the size of the internal processing queue. When too many messages have to be processed and this queue is full the next messages will be rescheduled.

Use the Local delivery threads field to specify the number of threads handling the local SMTP delivery. Thus you can fine tune the server behavior to your usage scenario. If you want to use your server mainly for local delivery you can set a higher number of delivery threads, top limit is 128.

When you are done configuring these parameters, remember to hit the Save Configuration button to preserve your changes.
