10.4.1.1. Supported AV/AS Applications

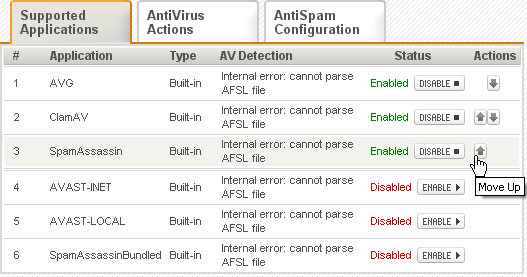

The AntiVirus and AntiSpam > Supported Applications page allows you to view and enable the AntiVirus and AntiSpam applications that you wish to run with AXIGEN Mail Server.



Under Supported Applications choose which of the available AntiVirus and AntiSpam applications should run by simply clicking on their corresponding Enable or Disable buttons.

Consider the following: SpamAssassin does not modify headers, no matter how SpamAssassin is configured; AXIGEN integrates X-AXIGEN-SpamLevel depending on the SpamAssassin score and can be used within spamtest and virustest SIEVE filters. Also, Bundled SpamAssassin is the same with the SpamAssassin option, just that it is integrated (bundled) within the AXIGEN kit.

To set the order in which enabled Antivirus and AntiSpam filters should apply, use the up and down arrows available under Actions. To update the AntiVirus and AntiSpam detection status refresh the current page by hitting the click here option.



Enabled applications will run simultaneously and act according to the general settings made in the next pages: AntiVirus Actions and AntiSpam Configuration. Additional antivirus/antispam protection can be granted for specific resources such as a domain or account, by enabling one or more extra applications only for that resource in its Message Filters section.
